Model 732 Ozone Primary Standard Photometer

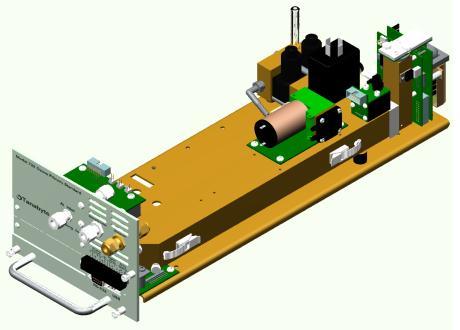

732 module

The Model 732 is an Ozone Photometer configured as a Primary Standard. A Primary Standard uses external zero air in place of an ozone scrubber for the reference measurement. The Model 732 is a photometer only and does not include an ozone generator.

The Model 732 is designed to be an ideal companion for the Model 322 Dilution Calibrator Module when paired in a Dual Docking Station. In this configuration, the ozone measured by the 732's photometer is used to regulate the output of the 322's ozone generator.





Rear Panel



Ozone Photometer Specifications

732 rear

Measurement Range:

0 - 1,000 PPB

Sample Flow Rate:

.5 to 2.0 LPM, adjustable

Lower Detectable Limit

< 0.5 PPB

Zero Noise:

< 0.0003 PPM

Span Noise:

< 0.5% of reading (above 100 PPB)

Precision:

< 1 PPB

Linearity:

< 1% of full scale

Zero Drift:

< .001 PPM per month

Span Drift (per 1 wk):

< 1% of reading

Lag / Rise / Fall Times:

10 / 20 / 20 seconds, respectively (with fast cycle setting)





Module Specifications:

Power

Standard:

+5, +/-15V & +24V at less than 80 Watts

12V Option:

9-16V at less than 7 amps

Dimensions:

7” wide x 4.9” high x 19.5” long (178 x 124.5 x 495 mm)

Weight:

9 lb (4 kg)

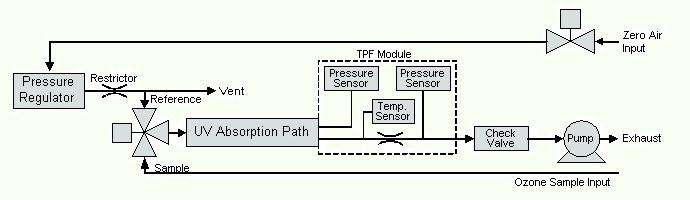

Flow Diagram



732 flow
